Fiberscopes

Also known as boroscopes or endoscopes, these products have a myriad of uses in industrial inspection applications. Excellent resolution from the quartz image array produces a bright, detailed image, while an innovative linkage design allows us to market an articulating scope for almost 50% less than traditional products on the market.

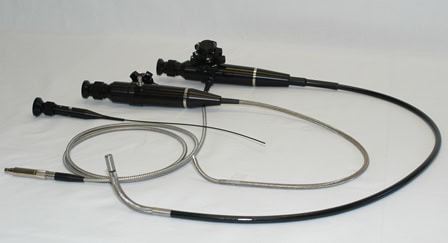

FTI Fiberscope provide excellent resolution from the quartz image array, producing a bright, detailed image

Our latest models offer improved 17K resolution, increasing image size 70%, integral C mount adapter to attach most digital cameras, and Xenon lamp option which doubles illumination power when compared to the standard lamp/battery handle design.

  • 2-way, 4-way, and non-articulating scopes in several sizes.
  • The quartz bundle image guide is guaranteed to be free of dead pixels in a 17K element array using 3 micron pixel size.
  • Low attenuation makes output from a 10 meter long scope as bright and clear as an image generated from a one-meter length of “regular” glass.Integral “C” mount adapter built into the adjustable diopter.
  • Custom diameters and lengths are available, along with a full range of accessories and options.
  • New articulating technology mimics traditional approach providing a wide range of motion robust construction, with less initial cost. We guarantee our design will reduce your cost of ownership by 50% when compared to competitive, more expensive brands, without sacrificing performance.
  • All standard models have the following features:
    • Glass lenses.
    • 17,000 pixel, high resolution image guide.
    • Internal illumination.
    • Adjustable focus.
    • Durable steel and/or aluminum for bodies and shaft.
    • Right angle capability.
    • 50 degree field of vision, 70 degree is available.
    • All scopes depth of field is .2”(5mm) – 3”(75mm). Videoscope DOF is .2”(5mm) – infinity.
    • Foam lined carrying case.
    • Battery handle (except .315”, .394” flexible and videoscope, which come with external light guide and light source).
    • Xenon Lamp option for battery handle.
  • As an option, 8mm articulating scopes come with aspiration port (use for air and water dispersion, or forceps to retrieve small parts or debris.)
  • These economical scopes are designed for the industrial inspection market. At this time, they are not equipped to measure defects in situ.

Send Us Your Parts: We will provide inspection solutions and photographs to prove the quality and versatility of our Scopes.

For more information regarding our full range of Scopes, contact Zach Morin.

FTI Fiberscopes - Non Articulating Models

Part #SizeShaft ConstructionBend RadiusArticulationCompatible Options
FTIFS19943
FTIFS19944
.039”(1mm)x 6” and 12”
(150mm and 300mm)
Braided Stainless Steel1.5” (37.5mm)15 deg. Shaft Deflection150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter
FTIFS19945
FTIFS19946
.066”(1.68mm)x 12”and 24” (300mm and 600mm)Extruded Urethane1.5” (37.5mm)0150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor
FTIFS19947
FTIFS19948
.120”(3mm)x24”and36”
(600mm and 900mm)
Braided Stainless Steel1.5” (37.5mm)0150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter
FTIFS19949.312”(7.9 mm)x24” (600mm)Stainless Steel Stay-put1.5” (37.5mm)0150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter
FTIFS19950.350”(9mm)x 18” (450mm)Stainless Steel Stay-put3” (75mm)0150W Illuminator, Light guide, Right angle adapter, Foam lined carrying case
FTIFS19951
FTIFS19952
.078”(2mm)x 6”and12” (150mm and 300mm)Rigid Stainless Steel Tubing0”(0mm)15 deg. Shaft Deflection150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter

FTI Fiberscopes - 2-Way Articulating Models

Part #SizeShaft ConstructionBend RadiusArticulationCompatible Options
FTIFS19953
FTIFS19954
.120”(3mm)x 24”and 36”(600mm and 900mm)Braided Stainless Steel1.5” (37.5mm)120 degrees
(up/down)
150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter
FTIFS19955
FTIFS19956
FTIFS19957
FTIFS19958
.236”(6mm)x 40”,60”,80 and 120”(1000mm,1500mm,2000mm and 3000mmBraided Stainless Steel2” (50mm)120 degrees
(up/down)
150W Illuminator, Light guide, Right angle adapter
FTIFS19959
FTIFS19960
.276”(7mm) x 24”and 36” (600mm and 900mm)Braided Stainless Steel1.5” (37.5mm)120 degrees
(up/down)
150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter
FTIFS19961.236”(6mm) x40”(1000mm)
Dura-flex
Braided Stainless Steel1.5” (37.5mm)120 degrees
(up/down)
150W Illuminator, Light guide, Right angle adapter

FTI Fiberscopes - 4-Way Articulating Models

Part #SizeShaft ConstructionBend RadiusArticulationCompatible Options
FTIFS19962
FTIFS19963
FTIFS19964
.315”(8mm)x 40”, 80 and 120”(1000mm, 2000mm and 3000mmBraided Stainless Steel2.75”
(70mm)
120 deg.
(up/down)
90 deg.
(left/right)
150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter
FTIFS19965
FTIFS19966
FTIFS19967
.394”(10mm)x 40”, 80 and 120”(1000mm, 2000mm and 3000mmBraided Stainless Steel3” (76mm)120 deg.
(up/down)
90 deg.
(left/right)
150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter
FTIFS19968.236”(6mm)x40” (1000mm)
Dura-flex
Braided Stainless Steel1.5”
(37.5mm)
180 deg.
(up)
120 deg.
(left, right, down)
150W Illuminator, Light guide, Right angle adapter
FTIFS19969.312”(8mm)x40” (1000mm)
Dura-flex
Braided Stainless Steel1.5”
(37.5mm)
180 deg.
(up)
120 deg.
(left, right, down)
150W Illuminator, Light guide, Right angle adapter
FTIFS19970.394”(10mm)x up to
35’(10,500mm)
Videoscope
Braided Stainless Steel5”
(127mm)
4-Way
90 deg.
150W Illuminator, Light guide, Camera adapter, “C” mount video camera, adapter and monitor, Right angle adapter
